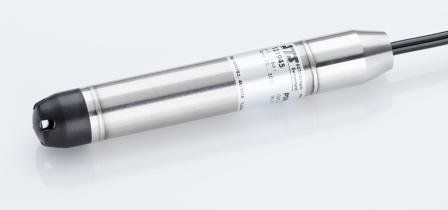

The miniature level probe has all the capabilities of much larger probes, but with a diameter of only 10mm. Features Pressure measuring range: 10…100 mH2O Accuracy: ≤ ± 0.50 / 0.25 Operating temperature: -5…50 °C Medium temperature: -5…50 °C Output signal: mV Materials: Stainless steel, titanium 10 mm outer diameter Customer benefits Miniature level sensor with a diameter of 10mm Any measuring ranges within 10 mH2O and 100 mH2O available Available in active or passive versions Titanium version for use in salt or brackish water Passive version for low power applications

ATM/N - Analogue level probe Functions Pressure measuring range: 1 … 250 mH2O Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS Operating temperature: -5 … 80°C Medium temperature: -5 … 80°C Output signal: 0 … 5 / 0 … 10 VDC, 0 … 20 / 4 … 20 mA Materials: Stainless steel, titanium Cable: PUR, PE, PTFE, pluggable Customer benefits Modular design allows for individual adaptation to the application Titanium version with PTFE cable for use in aggressive media Available with overvoltage protection Compact design for minimal space requirements

Pressure measuring range: 1 … 250 mH2O Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS Temperature measuring range: -5 … 80°C Operating temperature: -5 … 80°C Medium temperature: -5 … 80°C 2 output signals (p & T): 0 … 10 VDC, 0 … 20 / 4 … 20 mA Materials: Stainless steel, titanium Customer benefits Modular design allows for individual adaptation to the application Short response time makes it suitable for dynamic measurements Available with overvoltage protection Titanium version with PTFE cable for use in aggressive media

Functions Pressure measuring range: 5…250 mH2O Accuracy: ≤ ± 0.25 / 0.10 % FS Temperature measuring range: -25…85 °C Operating temperature: -5…50 °C Medium temperature: -5…50 °C Interface: SDI-12 (V1.3) Materials: Stainless steel, titanium Special features: Recalibrable, adjustable units Customer benefits Low energy consumption due to SDI-12 interface Zero point shift and measuring span can be adjusted in the field Multi-parameter probe with pressure & temperature available Modular design allows for individual adaptation to the application Stainless steel and titanium versions for use in acidic or otherwise aggressive media

ATM/NC functions optional with ATEX certificate Pressure measuring range: 1…250 mH2O Accuracy: ≤ ± 2.0 % FS Operating temperature: -5…80°C Medium temperature: -5…80°C Output signal: 0…5 / 0…10 V DC, 0…20 / 4…20 mA Materials: PVDF Customer benefits Unique sensor with high resistance for chemical applications High media compatibility due to a special PVDF housing Optional overvoltage protection Reverse polarity and short circuit protection

PTM - Pressure transmitter 4-20mA Functions Pressure measuring range: 100 mbar…1000 bar Measuring span: Pressure range adjustable up to 4:1 Accuracy: ≤ ± 0.25 / 0.10 % FS Operating temperature: -25…85 °C Medium temperature: -40…150 °C Output signal: 4…20 mA Materials: Stainless steel, titanium Customer benefits Great flexibility through freely selectable pressure measuring range Adjustment of zero point shift and measuring span Modular design, individual adaptation to the application Stainless steel and titanium version for use in acidic or otherwise aggressive media
