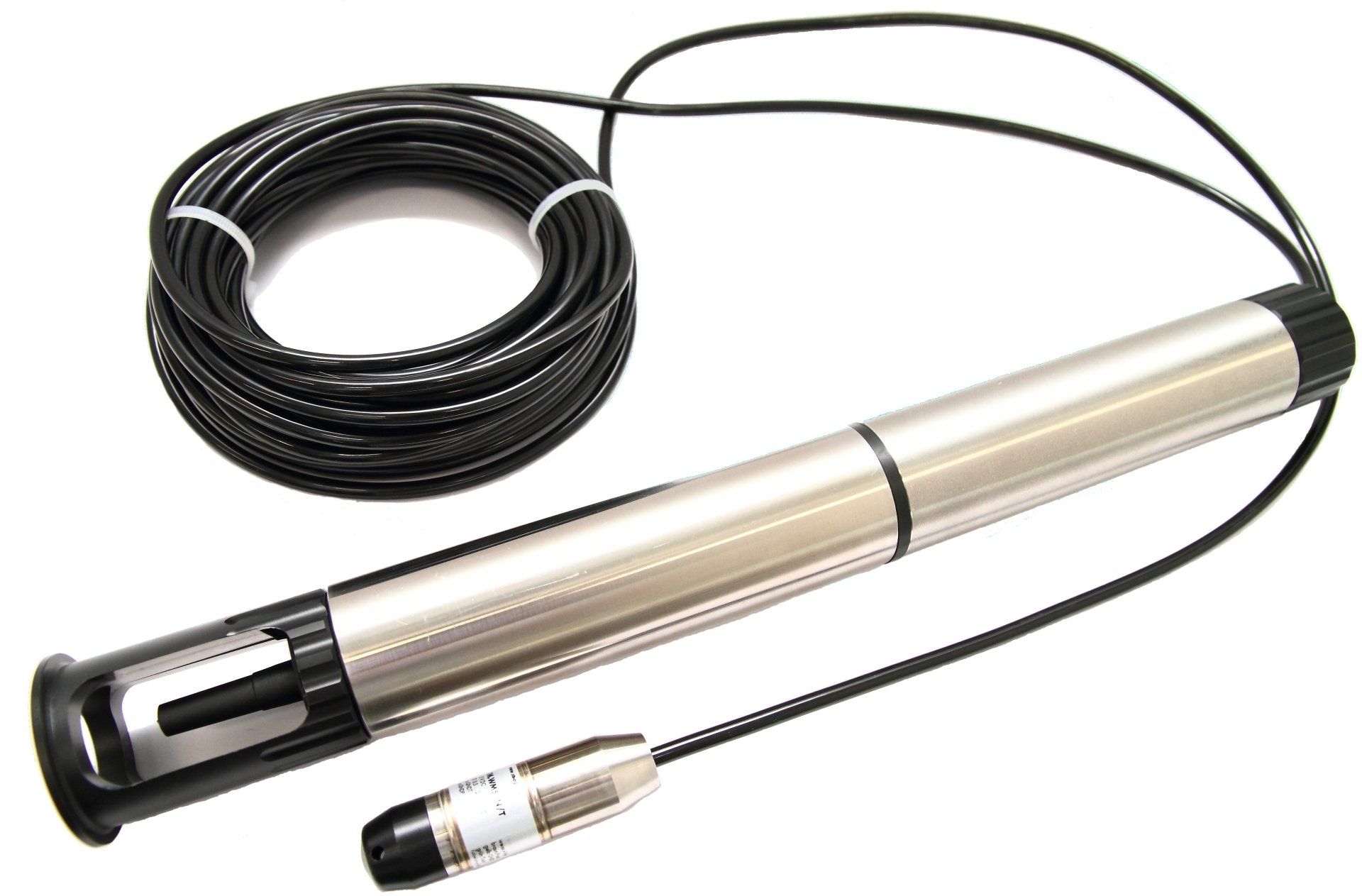

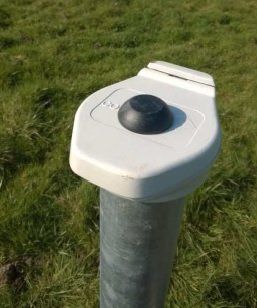

Aquatos Web - Level and groundwater data logger

Internet data logger for groundwater, water level and water quality



  • Internet data logger (groundwater data logger, level data logger) with storage space for 250,000 measurement data records, monitoring of the device status (battery voltage, leak tightness (relative humidity in the logger), operating temperature)
  • Modem for GSM/GPRS or LTE-M as well as 433MHz short-range radio communication or Bluetooth low Energy BlE for reading the data and configuring the logger

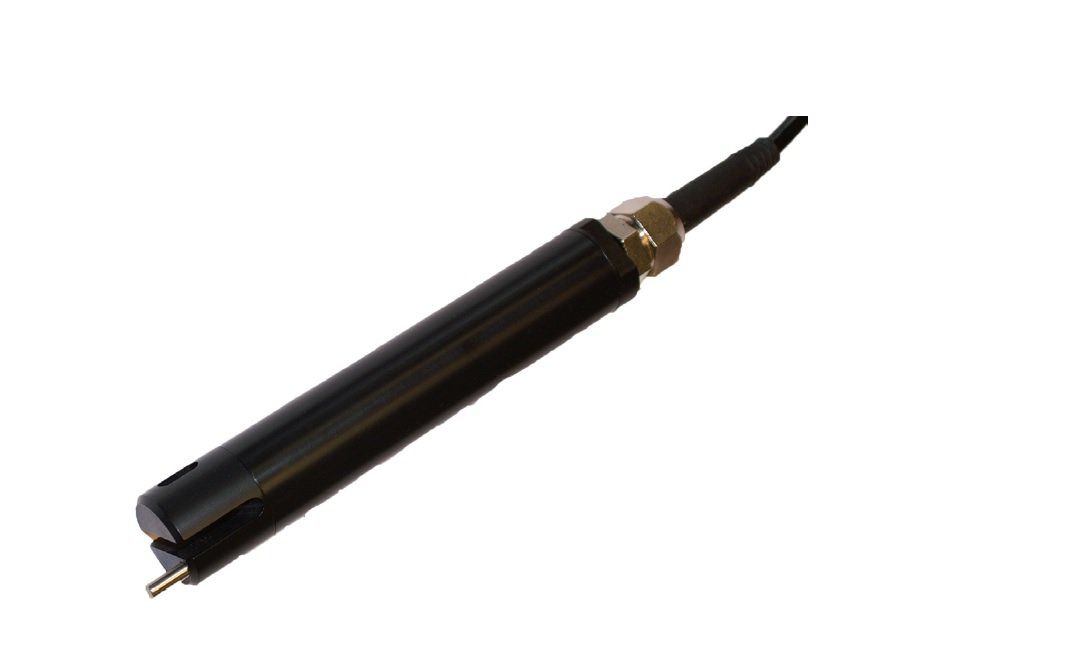

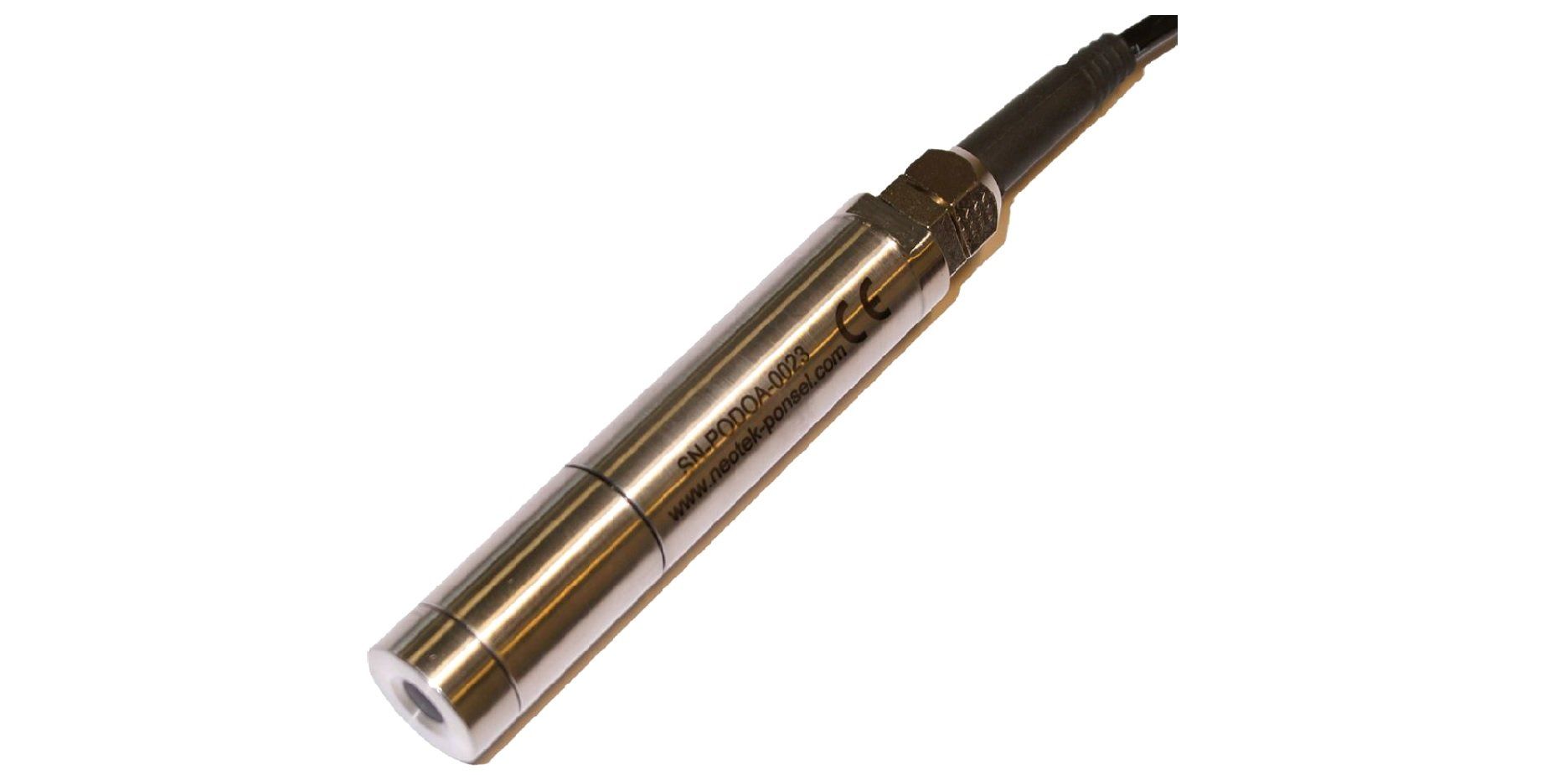

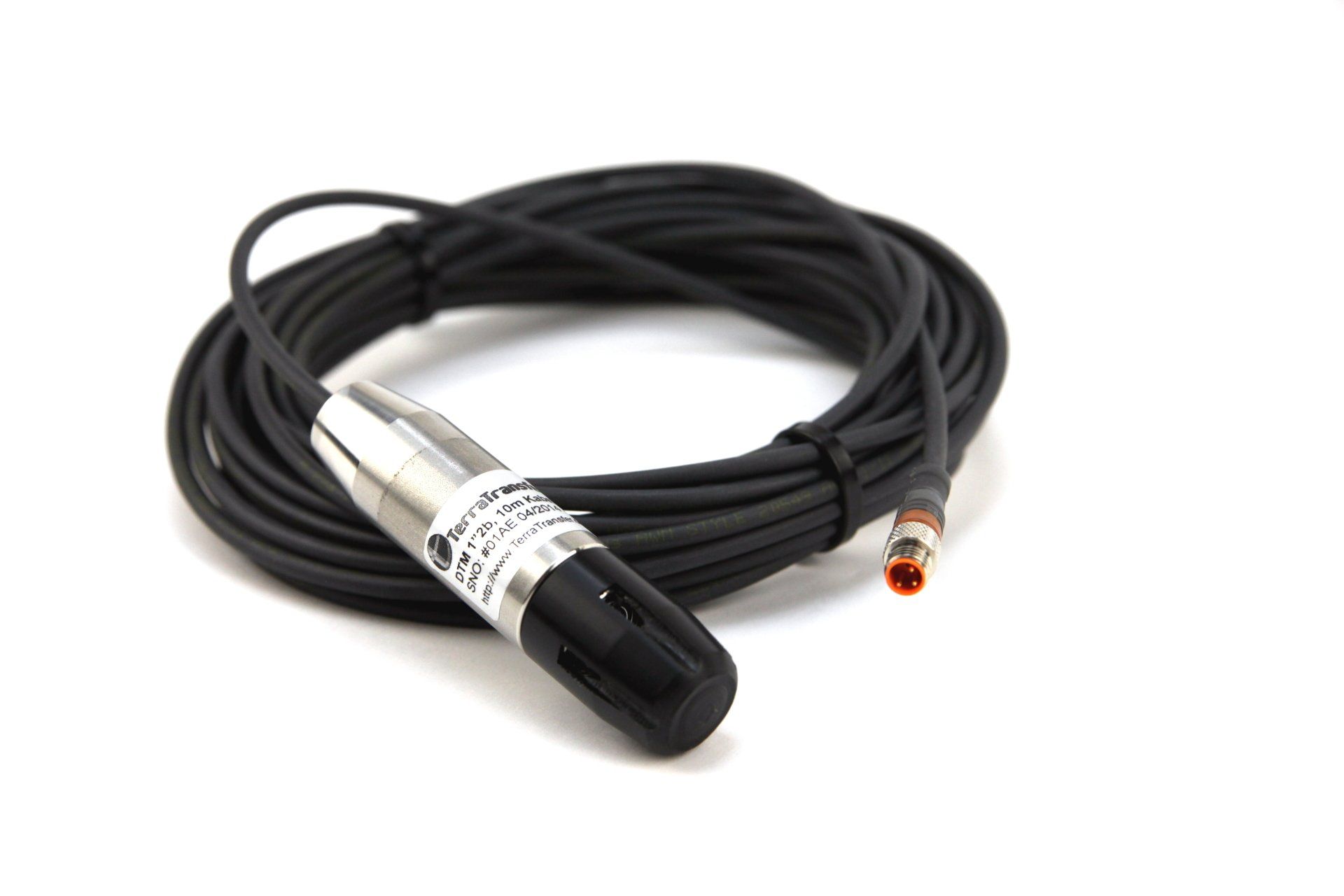

  • High precision pressure and temperature sensor made of stainless steel or titanium with an accuracy of <= 0.1% FS
  • Relative pressure system (absolute pressure systems for periodically flooded measuring points on request)
  • The level data logger is optimized for locations without infrastructure
  • Battery life up to 10 years with daily transmission and hourly measurement with double-D lithium cells, optionally up to 3 years with commercially available alkaline-manganese D cells
  • Automatic synchronization every time the time of all loggers is transferred by the server
  • The level data logger can be operated completely online via an Internet browser as well as locally via radio (433 MHz)

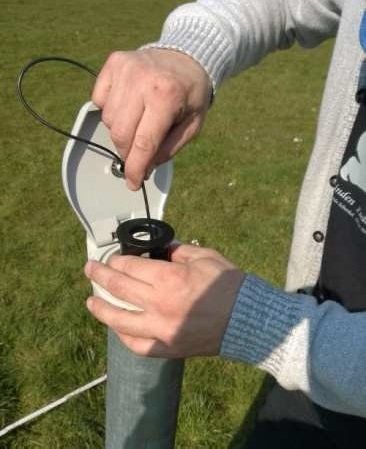

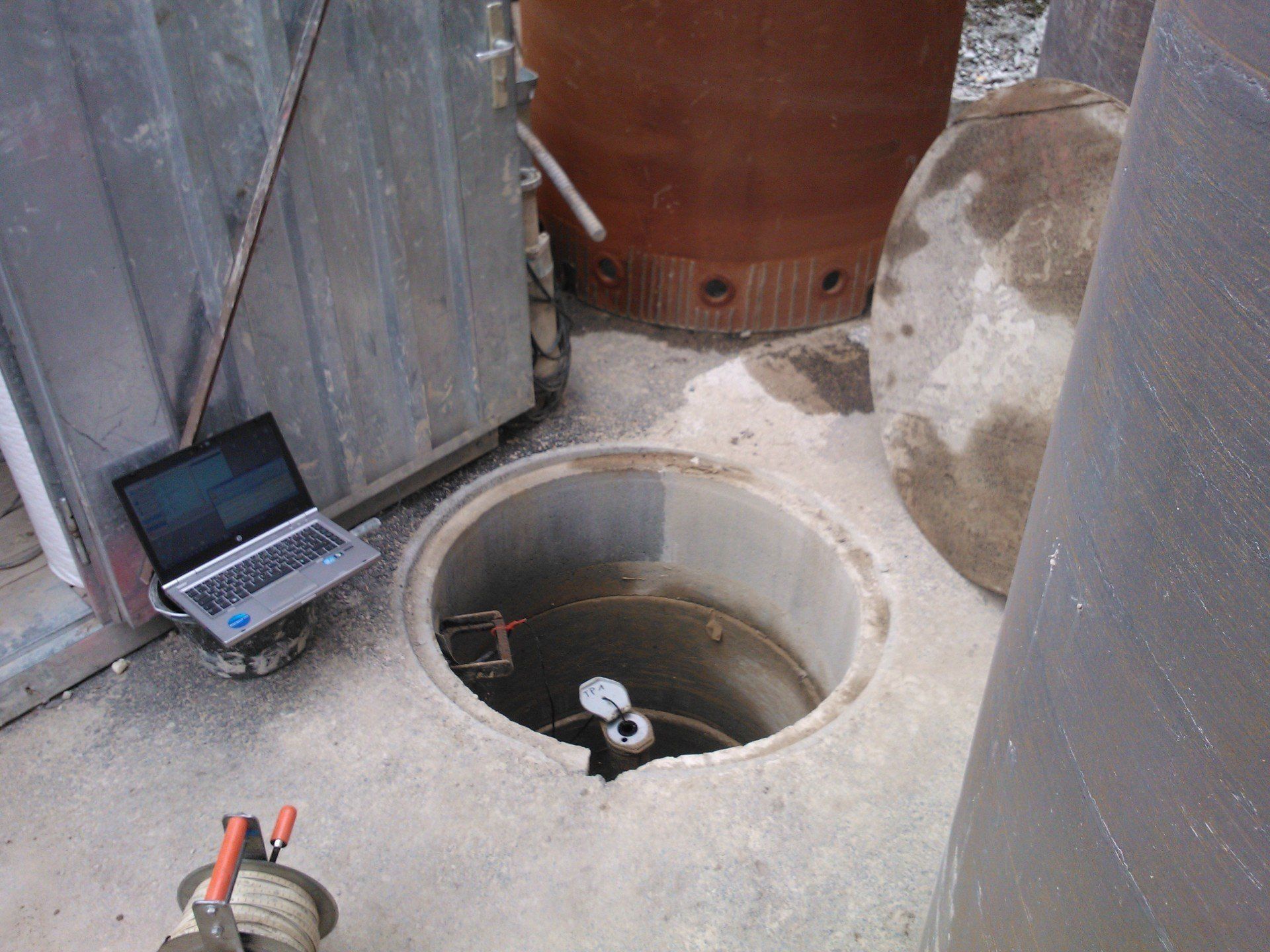

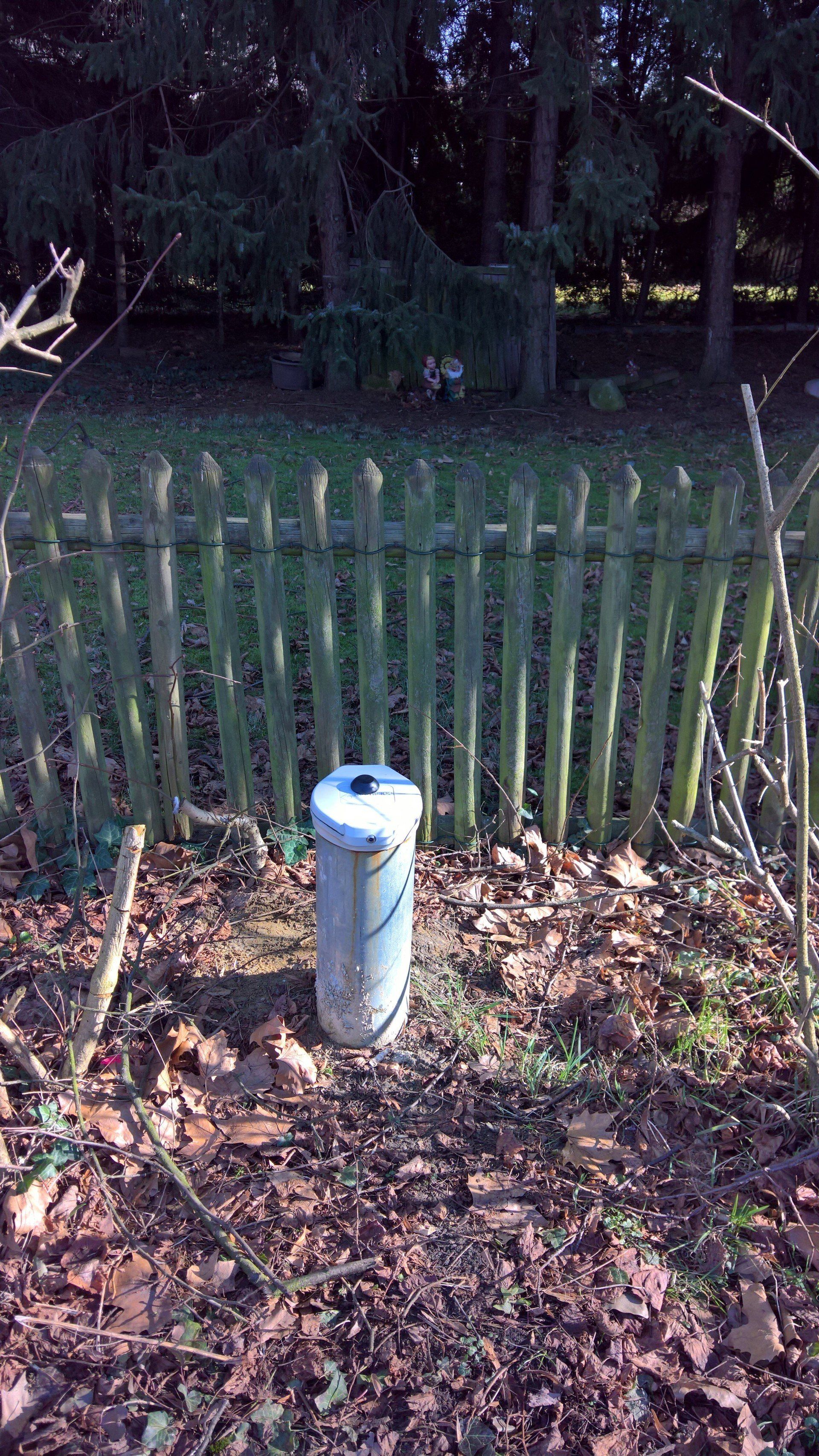

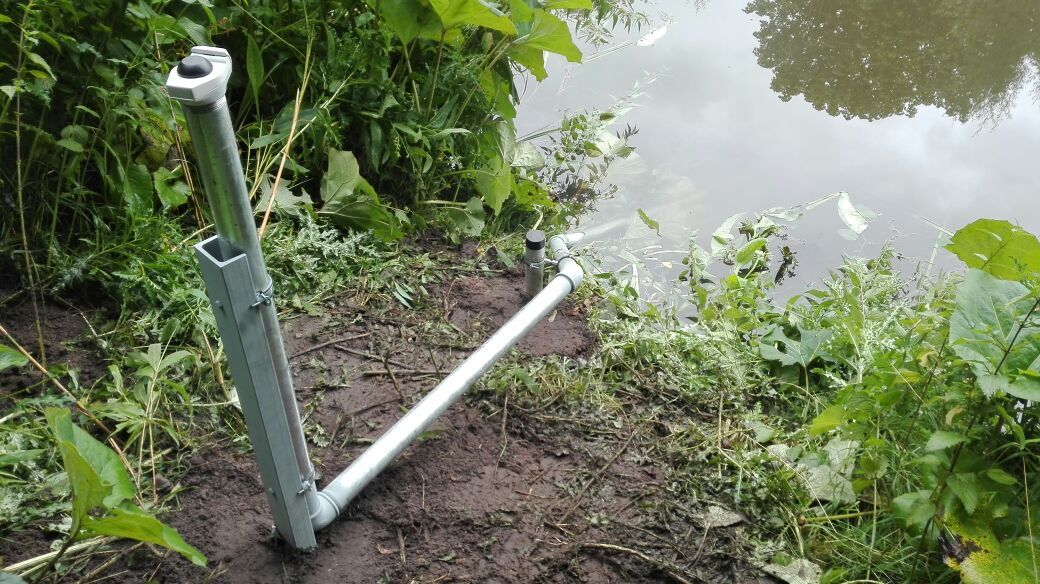

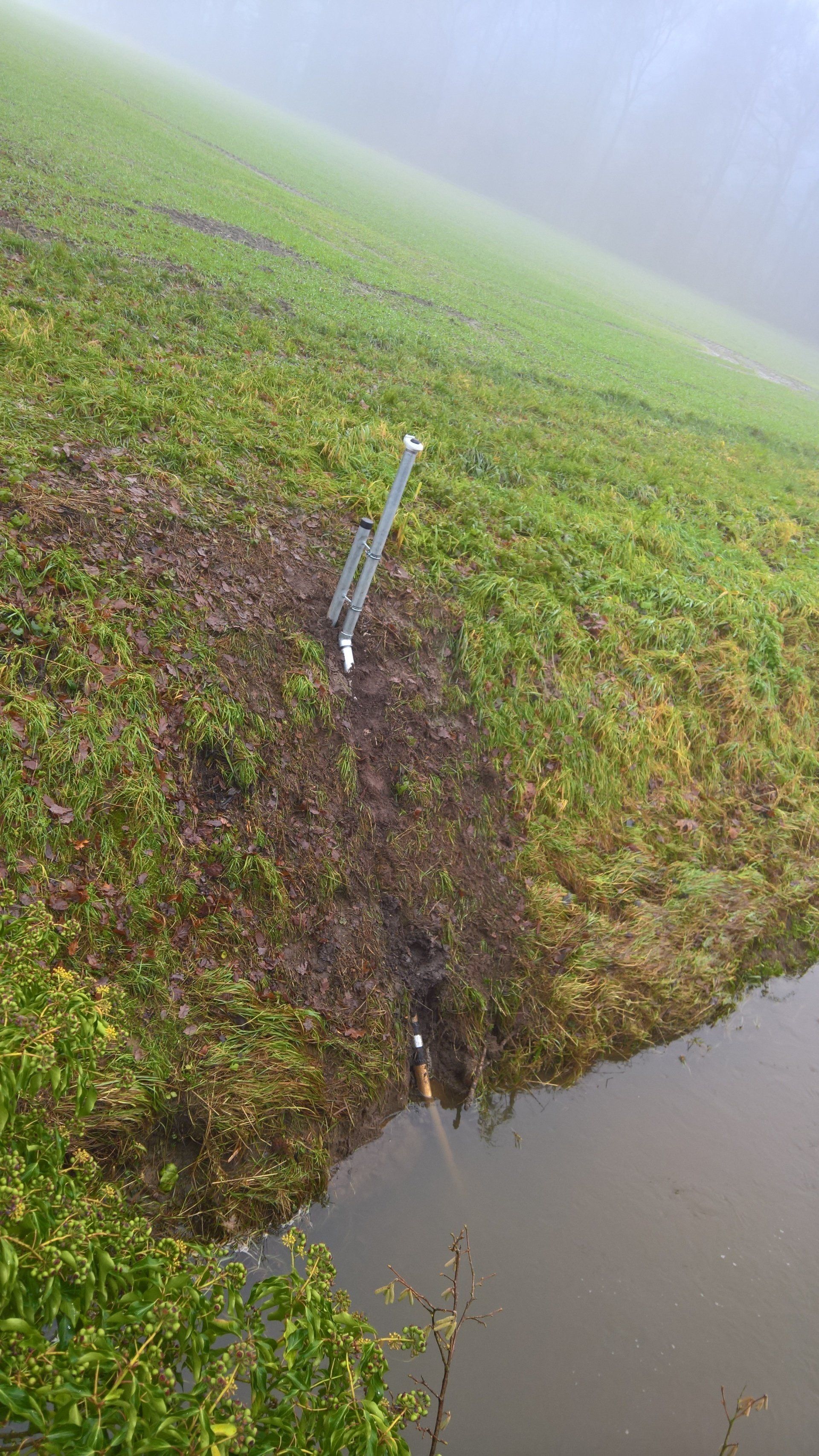

Installation

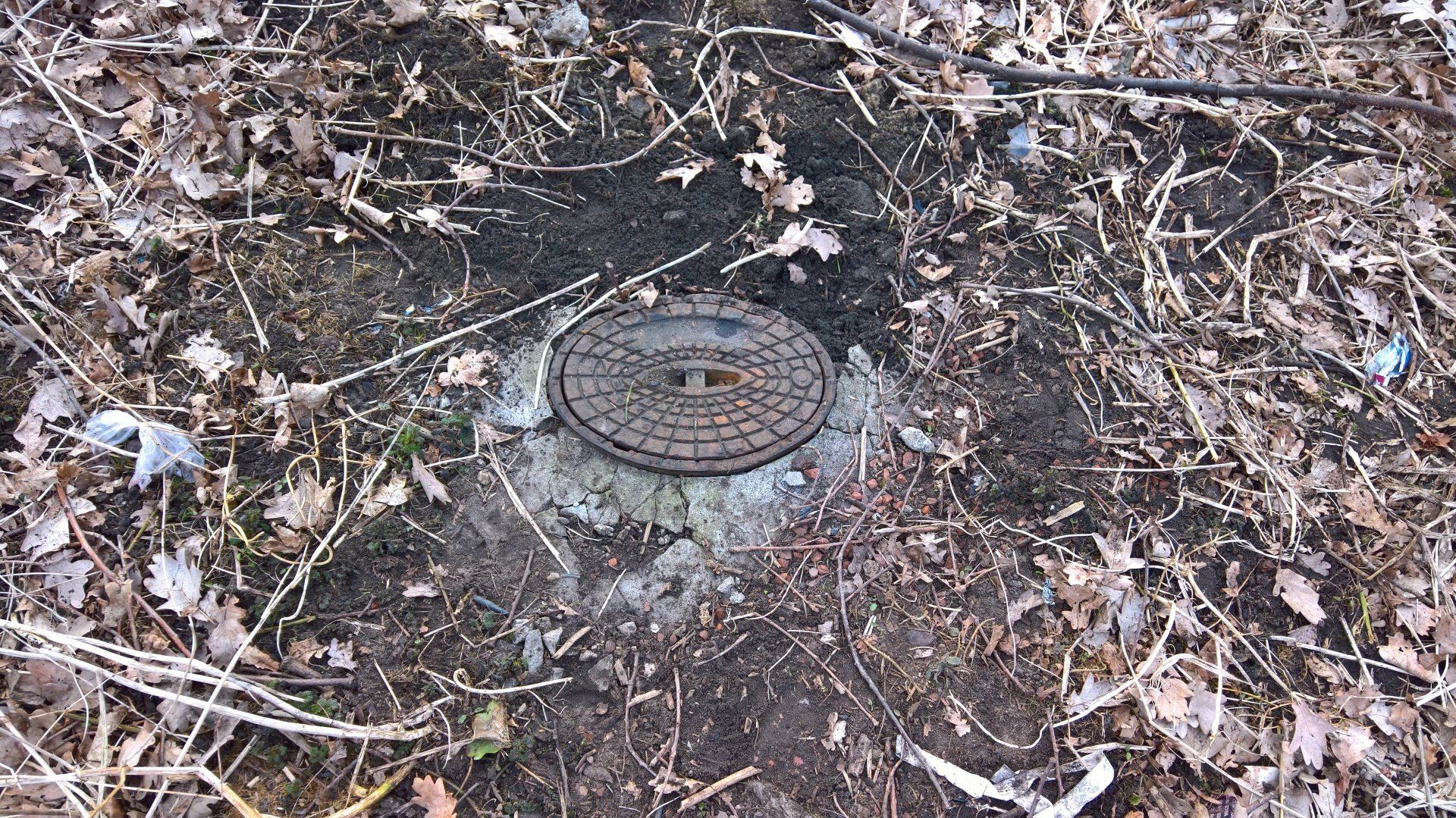

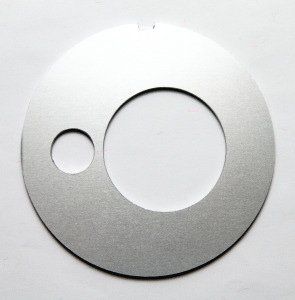

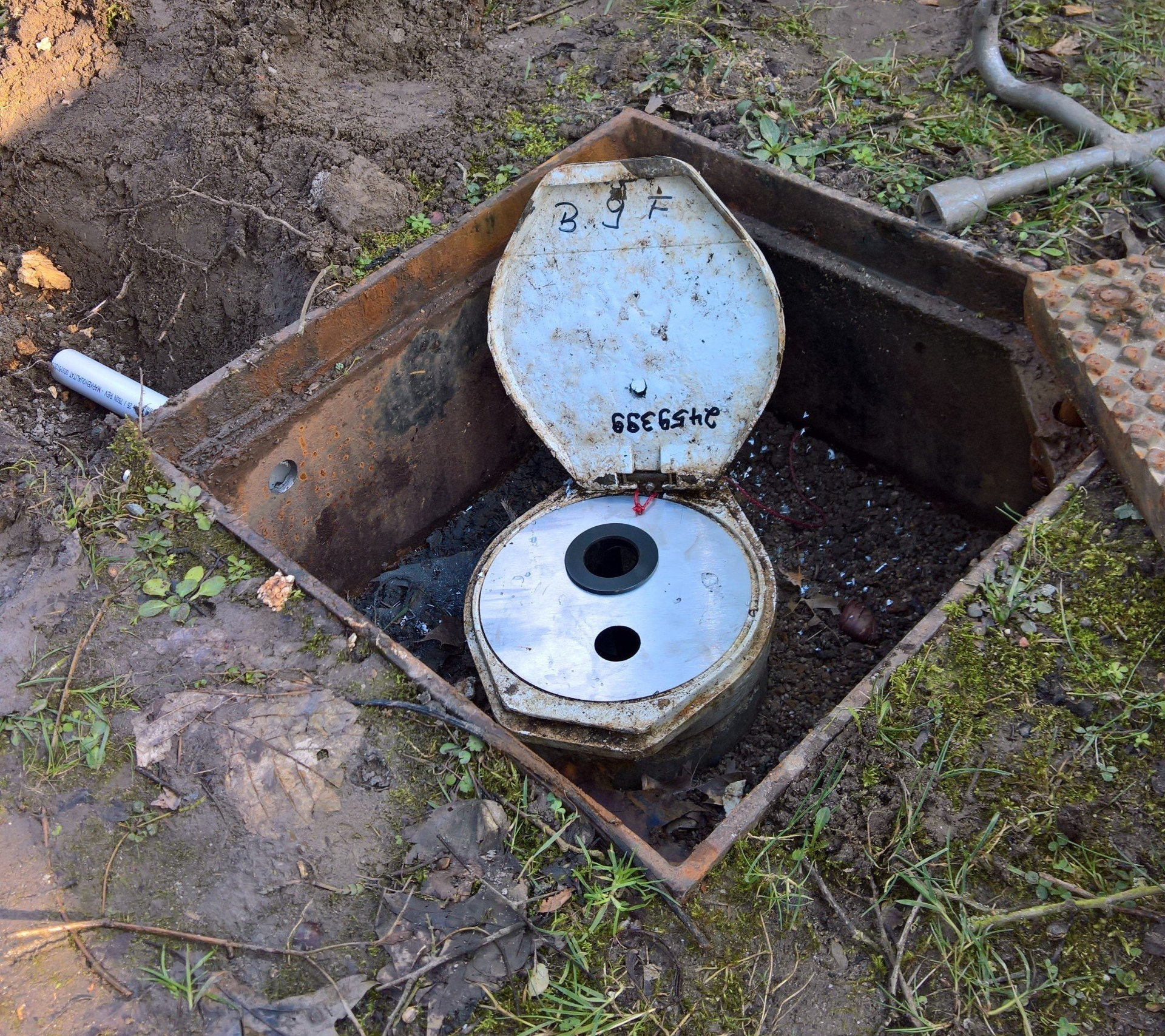

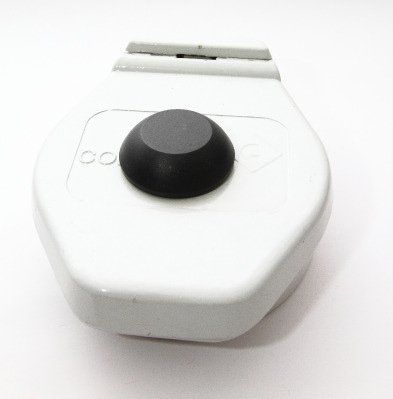

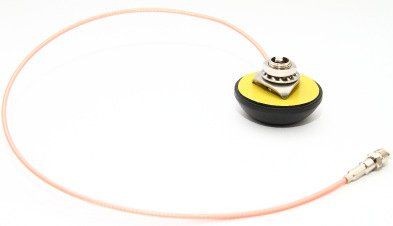

Installation from a measuring point diameter of 2 inches. Many different antenna solutions for above-ground and below-ground installation.

maintenance

All internet loggers monitor their internal status values. Intuitive displays of battery voltage, operating temperature, and air flow inside the housing are displayed using traffic light colors in the online status monitor. Flexible email or SMS alerts can be configured when maintenance is required.
